NFPA Hydraulic Cylinders | Parker, Rexroth

NFPA Cylinders

Specifications

NFPA - Bore 1 1/2" - 8"

Part number

Index

NFPA MX1/MX3

NFPA MX1 and MX3, tie rods extended at both ends and at the head end

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	AA	BB	DD	FH	R
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	2.3	1 3/8	3/8-24	3/8	1.63
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	2.9	11 3/16	1/2-20	5/8	2.05
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	3.6	11 3/16	1/2-20	5/8	2.55
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	4.6	2 5/16	5/8-18	3/4	3.25
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	5.4	2 5/16	5/8-18	7/8	3.82
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	7.0	3 3/16	7/8-14	7/8	4.95
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	8.1	3 5/8	1-14	1	5.73
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	9.3	4 1/8	1 1/8-12	1	6.58
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	10.6	4 1/2	1 1/4-12	1	7.5

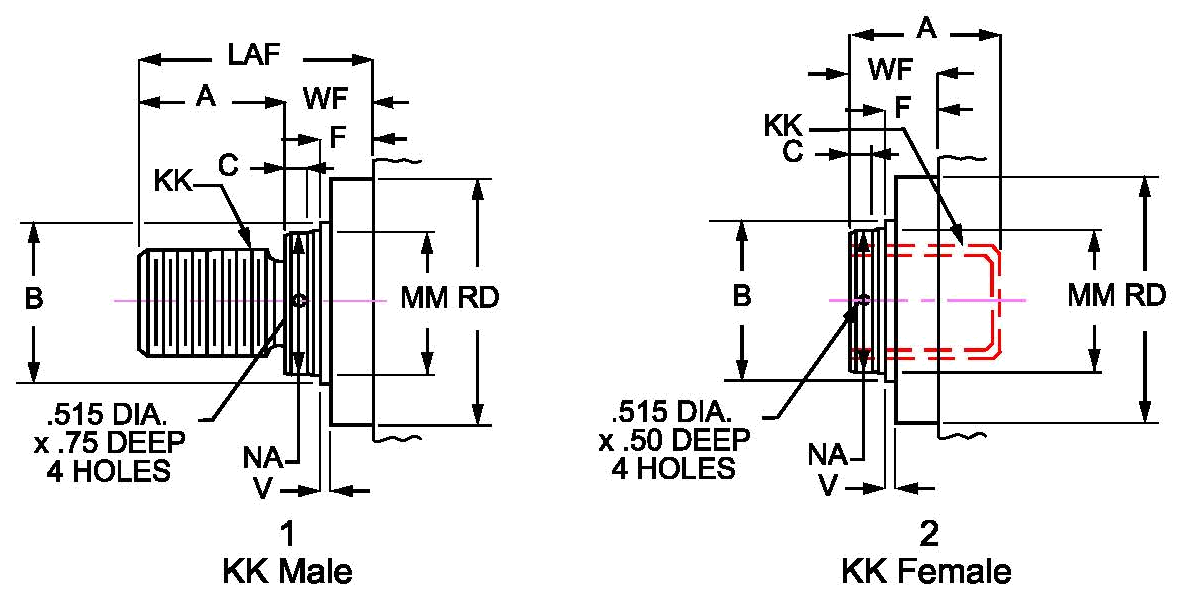

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	VB	W	Y	ZT*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	1/4	5/8	2 15/32	7
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	1/2	1	2 15/32	7 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	1/4	3/4	2 15/32	7 13/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	1	2 23/32	8 1/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	1/4	3/4	2 15/32	7 15/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	1	2 23/32	8 3/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	1/2	1 1/4	2 31/32	8 7/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	1/4	7/8	2 23/32	9 7/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3/8	1 1/8	2 31/32	9 11/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3/8	1 1/4	3 3/32	9 13/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	1/4	1	2 31/32	9 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	1/4	1 1/8	3 3/32	10 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3/8	1 3/8	3 11/32	10 5/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	1/4	1 1/8	3 3/32	11 7/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3/8	1 3/8	3 11/32	11 11/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	3/8	1 3/8	3 11/32	11 11/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	3/8	1 3/8	3 11/32	11 11/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	1/4	1 1/4	3 19/32	13 1/4
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	1/4	1 1/4	3 19/32	13 1/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1/4	1 1/4	3 19/32	13 1/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1/4	1 1/4	3 19/32	13 1/4
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	1/4	1 1/4	3 15/16	14 7/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1/4	1 1/4	3 15/16	14 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1/4	1 1/4	3 15/16	14 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1/4	1 1/4	3 15/16	14 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	1/4	1 1/4	3 15/16	14 7/8
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1/4	1 1/4	4 1/16	16 1/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1/4	1 1/4	4 1/16	16 1/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1/4	1 1/4	4 1/16	16 1/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	1/4	1 1/4	4 1/16	16 1/4
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	1/4	1 1/4	4 1/16	16 1/4

* Add the stroke to the dimension marked with an asterisk.

NFPA MX2

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	AA	BB	DD	R
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	2.3	1 3/8	3/8-24	1.63
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	2.9	11 3/16	1/2-20	2.05
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	3.6	11 3/16	1/2-20	2.55
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	4.6	2 5/16	5/8-18	3.25
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	5.4	2 5/16	5/8-18	3.82
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	7.0	3 3/16	7/8-14	4.95
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	8.1	3 5/8	1-14	5.73
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	9.3	4 1/8	1 1/8-12	6.58
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	10.6	4 1/2	1 1/4-12	7.5

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	F	V	WF	Y	ZT*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	3/8	1/4	1	2 15/32	7
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/2	1 3/8	2 15/32	7 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/4	1 3/8	2 15/32	7 13/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1 5/8	2 23/32	8 1/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	3/8	1 3/8	2 15/32	7 15/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1 5/8	2 23/32	8 3/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	1/2	1 7/8	2 31/32	8 7/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	13/32	1 5/8	2 23/32	9 7/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	3/8	1 7/8	2 31/32	9 11/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	3/8	2	3 3/32	9 13/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	17/32	1 7/8	2 31/32	9 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	2	3 3/32	10 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 11/32	10 5/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	2	3 3/32	11 7/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 11/32	11 11/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 11/32	11 11/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 11/32	11 11/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 19/32	13 1/4
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 19/32	13 1/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 19/32	13 1/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	3 19/32	13 1/4
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 15/16	14 7/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 15/16	14 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	3 15/16	14 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	2 1/4	3 15/16	14 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	2 1/4	3 15/16	14 7/8
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	4 1/16	16 1/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	4 1/16	16 1/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	2 1/4	4 1/16	16 1/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	2 1/4	4 1/16	16 1/4
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	15/16	3/8	2 1/4	4 1/16	16 1/4

* Add the stroke to the dimension marked with an asterisk.

NFPA ME5

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	F	V	WF	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	3/8	1/4	1	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/2	1 3/8	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/4	1 3/8	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1 5/8	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	3/8	1 3/8	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1 5/8	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	1/2	1 7/8	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	13/32	1 5/8	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	3/8	1 7/8	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	3/8	2	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	17/32	1 7/8	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	2	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	2	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	2 1/4	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	2 1/4	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	2 1/4	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	2 1/4	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	2 1/4	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	2 1/4	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	2 1/4	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	2 1/4	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	15/16	3/8	2 1/4	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

NFPA ME6

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	F	V	Y	ZJ*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	3/8	1/4	2 15/32	5 5/8
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/2	2 15/32	6
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/4	2 15/32	6
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	2 23/32	6 1/4
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	3/8	2 15/32	6 1/8
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	2 23/32	6 3/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	1/2	2 31/32	6 5/8
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	13/32	2 23/32	7 1/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	3/8	2 31/32	7 3/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	3/8	3 3/32	7 1/2
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	17/32	2 31/32	7 5/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	3 3/32	7 3/4
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	3 11/32	8
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	17/32	3 3/32	8 1/4
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	3 11/32	8 1/2
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	3 11/32	8 1/2
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	3 11/32	8 1/2
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	21/32	3 19/32	9 5/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	3 19/32	9 5/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	3 19/32	9 5/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	3 19/32	9 5/8
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	17/32	3 15/16	10 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	3 15/16	10 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	3 15/16	10 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	3 15/16	10 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	3 15/16	10 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	17/32	4 1/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	3/8	4 1/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	3/8	4 1/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	3/8	4 1/16	11 3/4
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	15/16	3/8	4 1/16	11 3/4

* Add the stroke to the dimension marked with an asterisk.

NFPA MF1

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	FH	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3/8	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	5/8	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	5/8	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3/4	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	7/8	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	7/8	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	1	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	1	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	1	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	PRESSURE MAX PSI	VB	W	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	1500	1/4	5/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	1000	1/2	1	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	2000	1/4	3/4	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	1200	3/8	1	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	2000	1/4	3/4	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	1500	3/8	1	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	1100	1/2	1 1/4	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	800	1/4	7/8	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	800	3/8	1 1/8	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	600	3/8	1 1/4	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	1000	1/4	1	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	1000	1/4	1 1/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	700	3/8	1 3/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	850	1/4	1 1/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	850	3/8	1 3/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	450	3/8	1 3/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	800	3/8	1 3/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	650	1/4	1 1/4	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	650	1/4	1 1/4	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	400	1/4	1 1/4	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	400	1/4	1 1/4	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	1400	1/4	1 1/4	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1200	1/4	1 1/4	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1100	1/4	1 1/4	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1000	1/4	1 1/4	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	800	1/4	1 1/4	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1100	1/4	1 1/4	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1000	1/4	1 1/4	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1000	1/4	1 1/4	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	800	1/4	1 1/4	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	800	1/4	1 1/4	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

NFPA MF2

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	FH	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3/8	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	5/8	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	5/8	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3/4	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	7/8	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	7/8	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	1	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	1	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	1	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	PRESSURE MAX PSI	F	VB	W	Y	ZF*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	2500	3/8	1/4	5/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	3/8	1/2	1	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	3/8	1/4	3/4	2 15/32	6 5/8
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	3/8	3/8	1	2 23/32	6 7/8
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	3/8	1/4	3/4	2 15/32	6 3/4
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	3/8	3/8	1	2 23/32	7
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	5/8	1/2	1 1/4	2 31/32	7 1/4
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	3/8	1/4	7/8	2 23/32	7 7/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	5/8	3/8	1 1/8	2 31/32	8 1/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3000	5/8	3/8	1 1/4	3 3/32	8 1/4
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	5/8	1/4	1	2 31/32	8 1/2
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3000	5/8	1/4	1 1/8	3 3/32	8 5/8
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3000	5/8	3/8	1 3/8	3 11/32	8 7/8
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	2000	5/8	1/4	1 1/8	3 3/32	9 1/8
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	2000	5/8	3/8	1 3/8	3 11/32	9 3/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	2500	7/8	3/8	1 3/8	3 11/32	9 3/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	3000	15/16	3/8	1 3/8	3 11/32	9 3/8
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	1800	5/8	1/4	1 1/4	3 19/32	10 5/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	2000	7/8	1/4	1 1/4	3 19/32	10 5/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	2000	15/16	1/4	1 1/4	3 19/32	10 5/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	2500	15/16	1/4	1 1/4	3 19/32	10 5/8
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	1400	7/8	1/4	1 1/4	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1200	15/16	1/4	1 1/4	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1100	15/16	1/4	1 1/4	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1000	15/16	1/4	1 1/4	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	800	15/16	1/4	1 1/4	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	1100	15/16	1/4	1 1/4	4 1/16	12 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	1000	15/16	1/4	1 1/4	4 1/16	12 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	1000	15/16	1/4	1 1/4	4 1/16	12 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	800	15/16	1/4	1 1/4	4 1/16	12 3/4
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	800	15/16	1/4	1 1/4	4 1/16	12 3/4

* Add the stroke to the dimension marked with an asterisk.

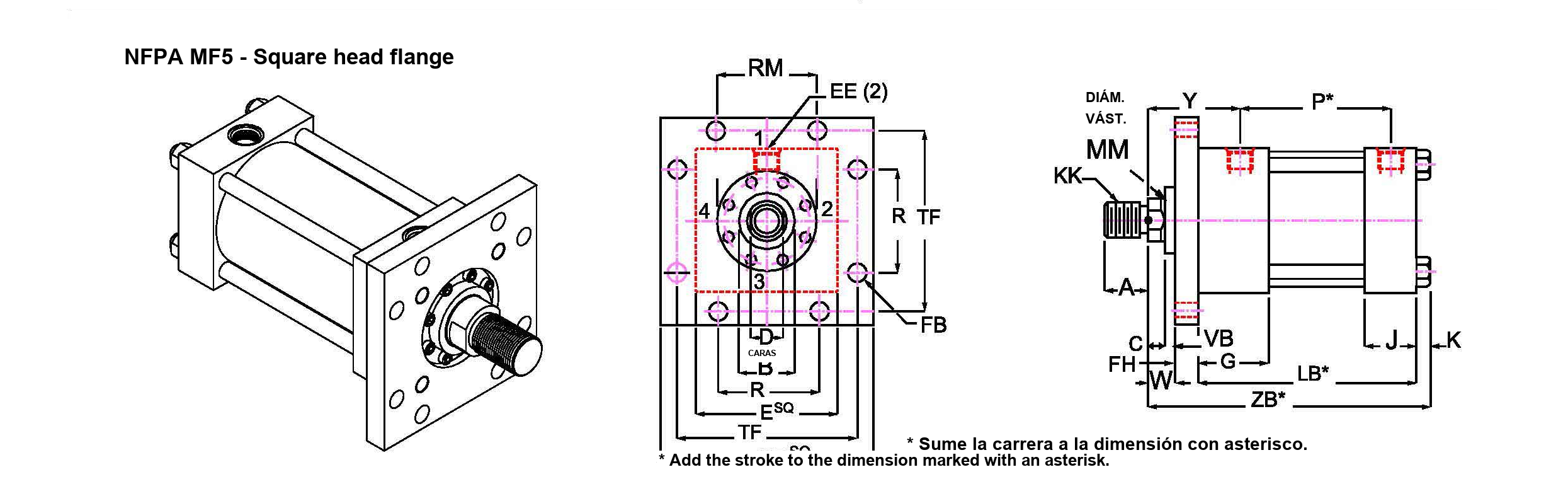

NFPA MF5

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	FH	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3/8	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	5/8	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	5/8	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3/4	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	7/8	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	7/8	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	1	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	1	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	1	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	MAX PRESSURE PSI	VB	W	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	3000	1/4	5/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	1/2	1	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	1/4	3/4	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	3/8	1	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3000	1/4	3/4	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	3/8	1	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	1/2	1 1/4	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3000	1/4	7/8	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	3/8	1 1/8	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3000	3/8	1 1/4	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	3000	1/4	1	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3000	1/4	1 1/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3000	3/8	1 3/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	3000	1/4	1 1/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3000	3/8	1 3/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	3000	3/8	1 3/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	3000	3/8	1 3/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	3000	1/4	1 1/4	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	3000	1/4	1 1/4	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	2700	1/4	1 1/4	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	2700	1/4	1 1/4	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	3000	1/4	1 1/4	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	3000	1/4	1 1/4	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	3000	1/4	1 1/4	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	3000	1/4	1 1/4	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	2700	1/4	1 1/4	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	3000	1/4	1 1/4	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	2500	1/4	1 1/4	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	2500	1/4	1 1/4	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	2500	1/4	1 1/4	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	2300	1/4	1 1/4	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

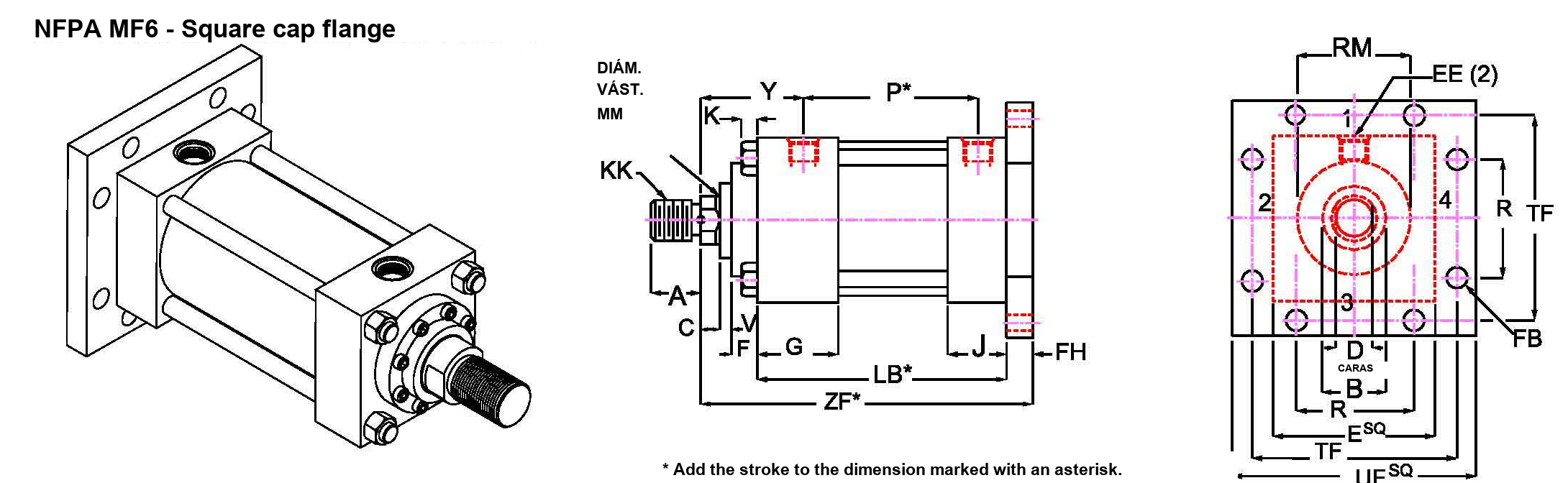

NFPA MF6

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	FH	R	TF	UF
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3/8	1.63	3 7/16	4 1/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	5/8	2.05	4 1/8	5 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	9/16	5/8	2.55	4 5/8	5 5/8
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	11/16	3/4	3.25	5 7/8	7 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	11/16	7/8	3.82	6 3/8	7 5/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	15/16	7/8	4.95	8 3/16	9 3/4
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 1/16	1	5.73	9 7/16	11 1/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 3/16	1	6.58	10 5/8	12 5/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 5/16	1	7.5	11 13/16	14

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	RM	F	VB	W	Y	ZF*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	1 15/16	3/8	1/4	5/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/2	1	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/4	3/4	2 15/32	6 5/8
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1	2 23/32	6 7/8
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	2 3/8	3/8	1/4	3/4	2 15/32	6 3/4
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	3/8	1	2 23/32	7
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	1/2	1 1/4	2 31/32	7 1/4
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	2 7/8	3/8	1/4	7/8	2 23/32	7 7/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	3/8	1 1/8	2 31/32	8 1/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	3/8	1 1/4	3 3/32	8 1/4
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	3 15/32	5/8	1/4	1	2 31/32	8 1/2
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	1/4	1 1/8	3 3/32	8 5/8
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	3/8	1 3/8	3 11/32	8 7/8
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	3 23/32	5/8	1/4	1 1/8	3 3/32	9 1/8
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	3/8	1 3/8	3 11/32	9 3/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	3/8	1 3/8	3 11/32	9 3/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	3/8	1 3/8	3 11/32	9 3/8
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	4 1/4	5/8	1/4	1 1/4	3 19/32	10 5/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	1/4	1 1/4	3 19/32	10 5/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	1/4	1 1/4	3 19/32	10 5/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	1/4	1 1/4	3 19/32	10 5/8
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	5 7/16	7/8	1/4	1 1/4	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	1/4	1 1/4	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	1/4	1 1/4	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	1/4	1 1/4	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	1/4	1 1/4	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	5 15/16	15/16	1/4	1 1/4	4 1/16	12 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	6 5/16	15/16	1/4	1 1/4	4 1/16	12 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	6 15/16	15/16	1/4	1 1/4	4 1/16	12 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	7 7/16	15/16	1/4	1 1/4	4 1/16	12 3/4
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	7 15/16	15/16	1/4	1 1/4	4 1/16	12 3/4

* Add the stroke to the dimension marked with an asterisk.

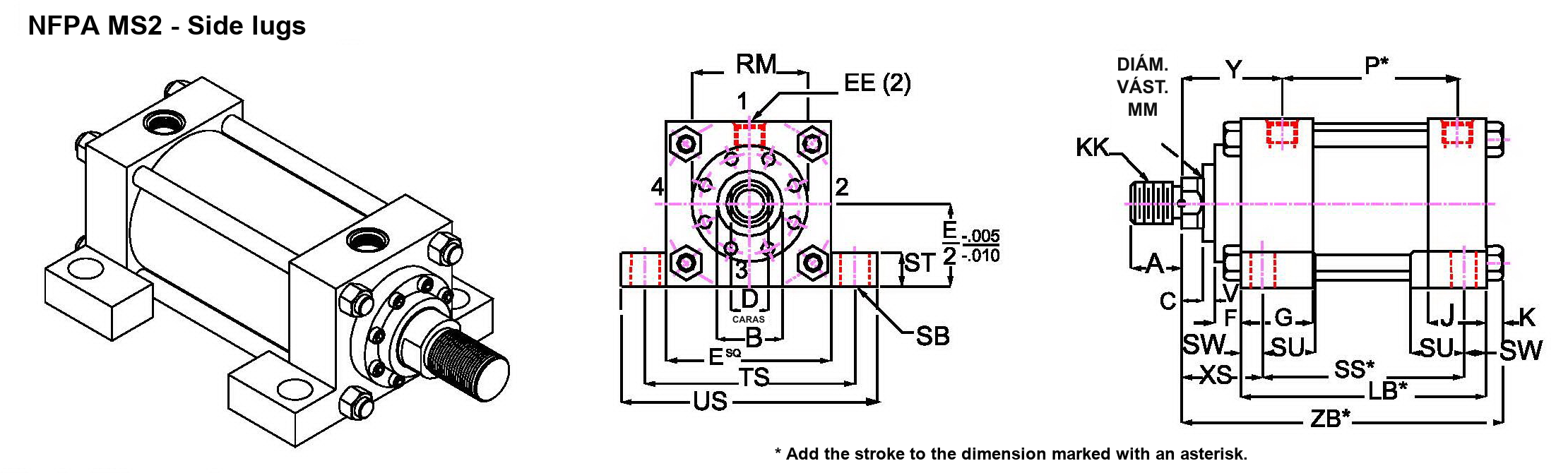

NFPA MS2

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	SB	SS*	ST	SU	SW	TS	US
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3 7/8	1/2	15/16	3/8	3 1/4	4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	3 5/8	3/4	1 1/4	1/2	4	5
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	13/16	3 3/8	1	1 9/16	11/16	4 7/8	6 1/4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	13/16	4 1/8	1	1 9/16	11/16	5 7/8	7 1/4
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	1 1/16	4	1 1/4	2	7/8	6 3/4	8 1/2
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	1 1/16	4 1/2	1 1/4	2	7/8	8 1/4	10
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 5/16	5 1/8	1 1/2	2 1/2	1 1/8	9 3/4	12
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 9/16	5 3/4	1 3/4	2 7/8	1 3/8	11 1/4	14
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 9/16	6 3/4	1 3/4	2 7/8	1 3/8	12 1/4	15

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	XS	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	1 3/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	1 3/4	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	1 7/8	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 1/8	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 1/16	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 5/16	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 9/16	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 5/16	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	2 9/16	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	2 11/16	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	2 3/4	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	2 7/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	2 1/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	2 7/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 1/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 1/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 1/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 3/8	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 3/8	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 3/8	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 3/8	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 5/8	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 5/8	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 5/8	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 5/8	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 5/8	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 5/8	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 5/8	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 5/8	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 5/8	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	3 5/8	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

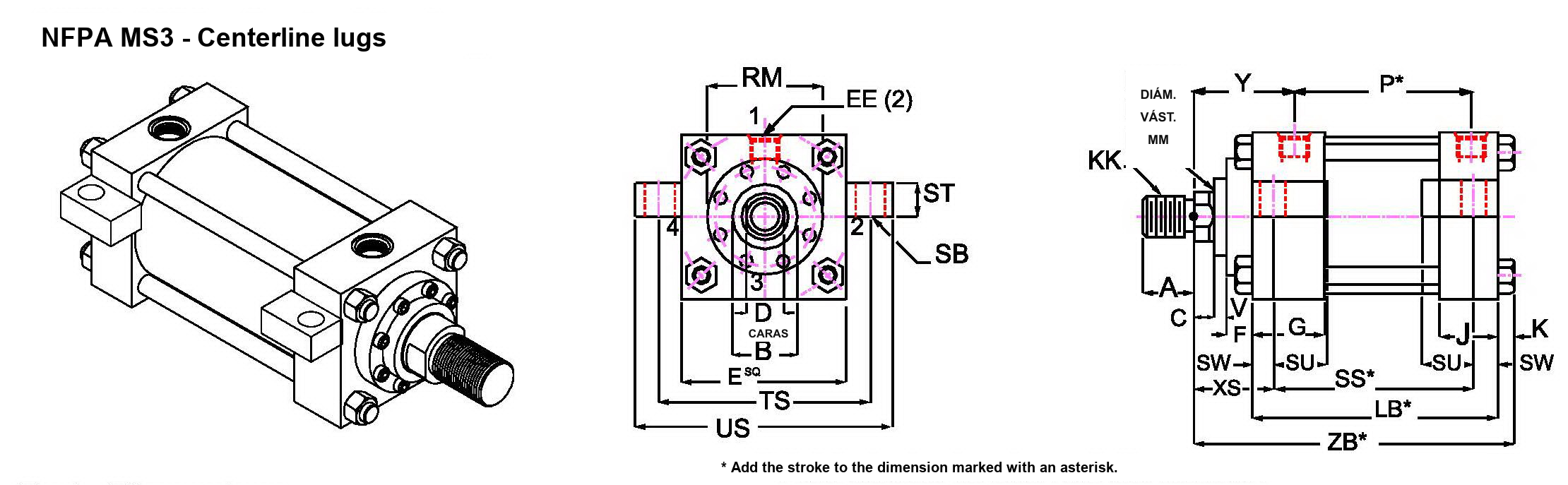

NFPA MS3

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	SB	SS*	ST	SU	SW	TS	US
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	7/16	3 7/8	1/2	15/16	3/8	3 1/4	4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	9/16	3 5/8	3/4	1 1/4	1/2	4	5
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	13/16	3 3/8	1	1 9/16	11/16	4 7/8	6 1/4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	13/16	4 1/8	1	1 9/16	11/16	5 7/8	7 1/4
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	1 1/16	4	1 1/4	2	7/8	6 3/4	8 1/2
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	1 1/16	4 1/2	1 1/4	2	7/8	8 1/4	10
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	1 5/16	5 1/8	1 1/2	2 1/2	1 1/8	9 3/4	12
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	1 9/16	5 3/4	1 3/4	2 7/8	1 3/8	11 1/4	14
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	1 9/16	6 3/4	1 3/4	2 7/8	1 3/8	12 1/4	15

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	XS	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	1 3/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	1 3/4	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	1 7/8	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 1/8	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 1/16	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 5/16	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 9/16	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 5/16	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	2 9/16	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	2 11/16	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	2 3/4	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	2 7/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	2 1/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	2 7/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 1/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 1/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 1/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 3/8	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 3/8	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 3/8	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 3/8	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 5/8	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 5/8	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 5/8	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 5/8	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 5/8	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 5/8	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 5/8	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 5/8	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 5/8	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	3 5/8	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

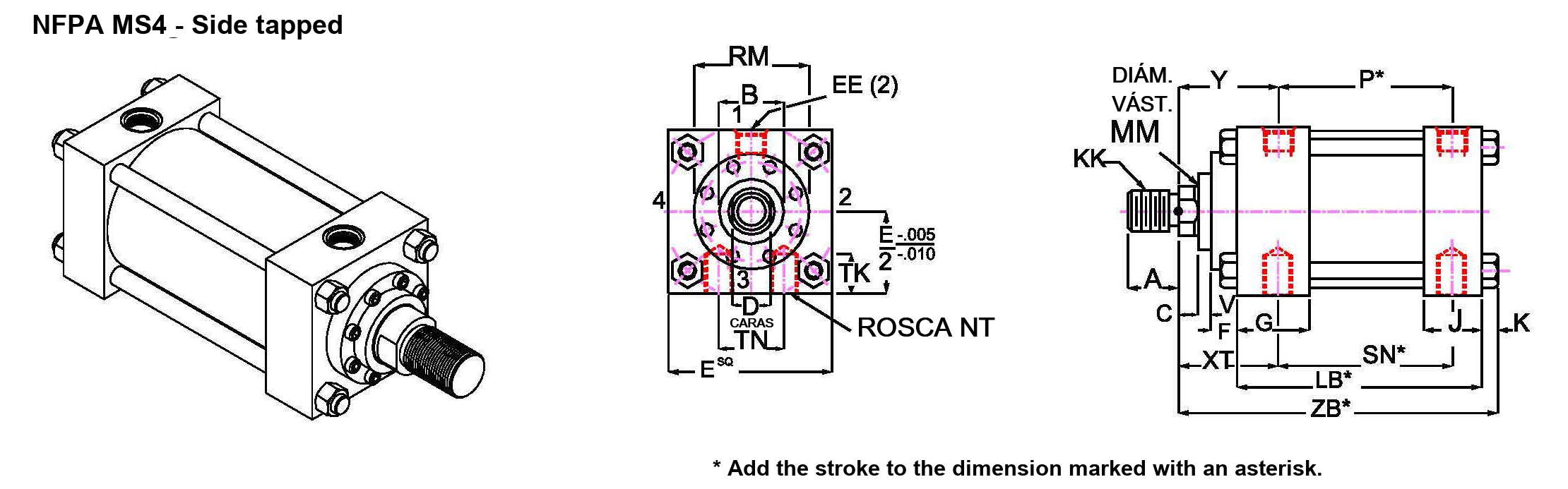

NFPA MS4

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	NT	P*	SN*	TK	TN
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	3/8-16	2 11/16	2 7/8	9/16	3/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	1/2-13	2 11/16	2 7/8	1/2	15/16
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	5/8-11	2 13/16	3	13/16	1 5/16
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3/4-10	3 9/16	3 1/2	3/4	1 1/2
4	5	12	3/4	2	1 3/4	9/16	5 3/4	1-8	3 13/16	3 3/4	1	2 1/16
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	1-8	4 5/16	4 1/4	1 1/8	2 15/16
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	1 1/4-7	4 11/16	5 1/8	1 5/16	3 5/16
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	1 1/2-6	5 1/8	5 7/8	2 1/8	3 3/4
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	1 1/2-6	5 7/8	6 5/8	1 9/16	4 1/4

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	XT	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	2	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	2 3/8	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	2 3/8	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 5/8	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 3/8	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 5/8	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 7/8	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 3/4	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	3	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	3 1/8	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	3	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 1/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 3/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 1/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 3/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 3/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 3/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 1/2	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 1/2	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 1/2	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 1/2	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 13/16	3 15/16	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 13/16	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 13/16	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 13/16	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 13/16	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 15/16	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 15/16	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 15/16	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 15/16	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	3 15/16	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

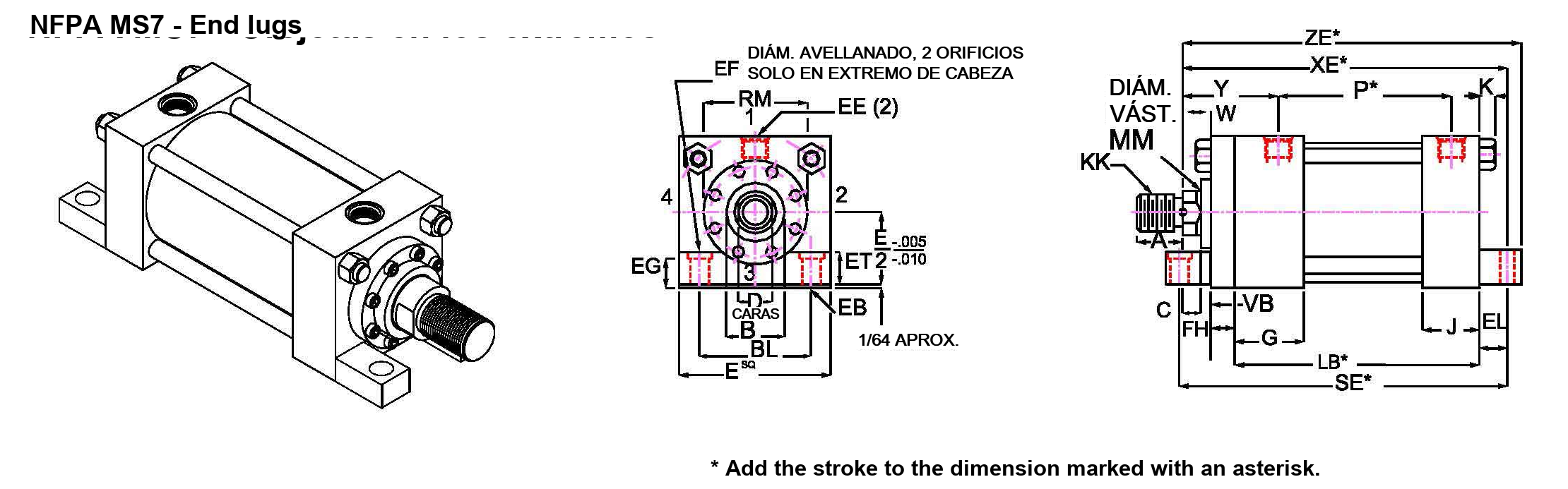

NFPA MS7

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	BL	EB	EF	EG	EL	ET	FH	SE*
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	1.63	7/16	5/8	11/16	7/8	7/8	3/8	6 3/4
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	2.07	9/16	13/16	3/4	15/16	1	5/8	7 1/8
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	2.56	9/16	13/16	3/4	15/16	1	5/8	7 1/4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	3.27	11/16	1	1 1/16	1 1/8	1 1/4	3/4	8 1/2
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	3.84	11/16	1	7/8	1 1/8	1 1/4	7/8	8 7/8
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	4.95	15/16	1 3/8	1 1/4	1 1/2	1 1/2	7/8	10 1/8
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	5.74	1 1/16	1 5/8	1 1/2	1 11/16	1 3/4	1	11 3/4
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	6.58	1 3/16	1 5/8	1 1/2	1 13/16	2	1	13 1/8
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	7.51	1 5/16	2 3/32	1 3/4	2	2	1	14 1/2

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	VB	W	XE*	Y	ZB*	ZE*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	5/8	6 1/2	2 15/32	6	6 7/8
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	1	6 7/8	2 15/32	6 3/8	7 1/4
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	3/4	6 15/16	2 15/32	6 7/16	7 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	1	7 3/16	2 23/32	6 11/16	7 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	3/4	7 1/16	2 15/32	6 9/16	7 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	1	7 5/16	2 23/32	6 13/16	7 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	1 1/4	7 9/16	2 31/32	7 1/16	8 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	1/4	7/8	8 1/4	2 23/32	7 11/16	8 7/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	1 1/8	8 1/2	2 31/32	7 15/16	9 1/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	1 1/4	8 5/8	3 3/32	8 1/16	9 1/4
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/4	1	8 3/4	2 31/32	8 3/16	9 3/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	1/4	1 1/8	8 7/8	3 3/32	8 5/16	9 1/2
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	3/8	1 3/8	9 1/8	3 11/32	8 9/16	9 3/4
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	1/4	1 1/8	9 3/4	3 3/32	9 1/16	10 1/2
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	3/8	1 3/8	10	3 11/32	9 5/16	10 3/4
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	3/8	1 3/8	10	3 11/32	9 5/16	10 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	3/8	1 3/8	10	3 11/32	9 5/16	10 3/4
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	1/4	1 1/4	11 5/16	3 19/32	10 9/16	12 3/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	1/4	1 1/4	11 5/16	3 19/32	10 9/16	12 3/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	1/4	1 1/4	11 5/16	3 19/32	10 9/16	12 3/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	1/4	1 1/4	11 5/16	3 19/32	10 9/16	12 3/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	1/4	1 1/4	12 9/16	3 15/16	11 3/4	13 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	1/4	1 1/4	12 9/16	3 15/16	11 3/4	13 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	1/4	1 1/4	12 9/16	3 15/16	11 3/4	13 9/16
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	1/4	1 1/4	12 9/16	3 15/16	11 3/4	13 9/16
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	1/4	1 1/4	12 9/16	3 15/16	11 3/4	13 9/16
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	1/4	1 1/4	13 3/4	4 1/16	12 7/8	14 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	1/4	1 1/4	13 3/4	4 1/16	12 7/8	14 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	1/4	1 1/4	13 3/4	4 1/16	12 7/8	14 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	1/4	1 1/4	13 3/4	4 1/16	12 7/8	14 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	1/4	1 1/4	13 3/4	4 1/16	12 7/8	14 7/8

* Add the stroke to the dimension marked with an asterisk.

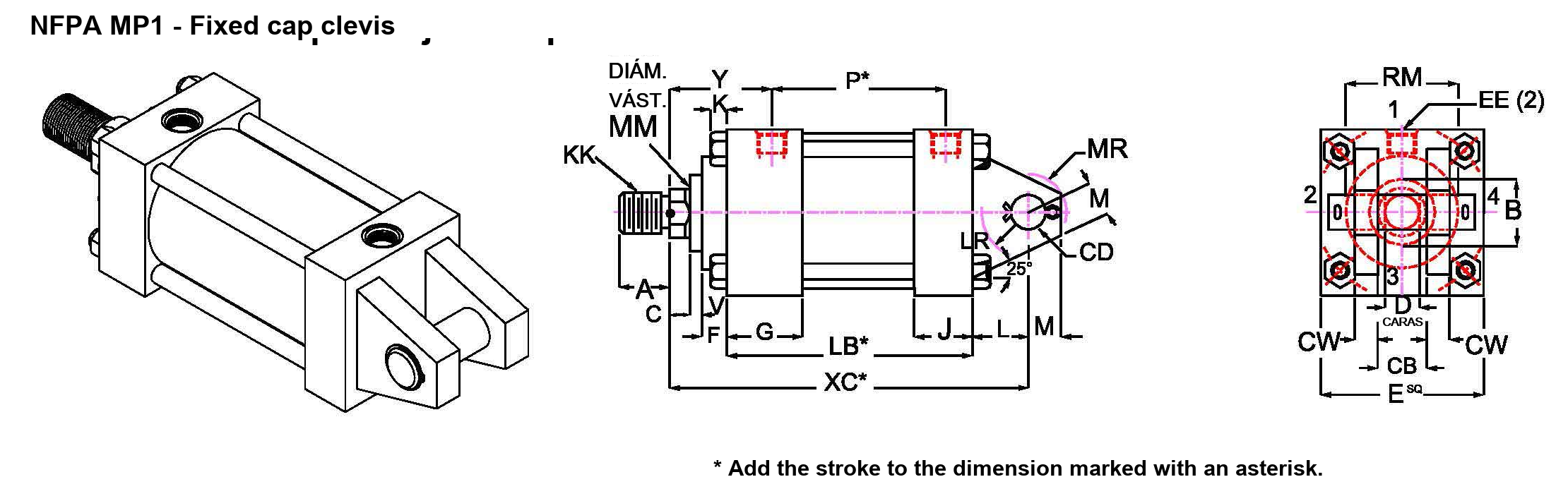

NFPA MP1

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	CB	CD	CW	L	LR	M	MR
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	3/4	1/2	1/2	3/4	9/16	1/2	9/16
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	1 1/4	3/4	5/8	1 1/4	1 1/16	3/4	1 1/16
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	1 1/4	3/4	5/8	1 1/4	1 1/16	3/4	1 1/16
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	1 1/2	1	3/4	1 1/2	1 1/4	1	1 1/8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	2	1 3/8	1	2 1/8	1 7/8	1 3/8	1 3/4
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	2 1/2	1 3/4	1 1/4	2 1/4	1 15/16	1 3/4	1 7/8
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	2 1/2	2	1 1/4	2 1/2	2 1/16	2	2 1/8
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	3	2 1/2	1 1/2	3	2 9/16	2 1/2	2 1/2
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	3	3	1 1/2	3 1/4	2 11/16	2 3/4	2 3/4

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	Y	XC*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	2 15/32	6 3/8
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	2 15/32	6 3/4
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	2 15/32	7 1/4
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 23/32	7 1/2
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 15/32	7 3/8
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 23/32	7 5/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 31/32	7 7/8
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 23/32	8 5/8
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	2 31/32	8 7/8
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	3 3/32	9
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	2 31/32	9 3/4
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 3/32	9 7/8
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 11/32	10 1/8
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 3/32	10 1/2
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 11/32	10 3/4
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 11/32	10 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 11/32	10 3/4
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 19/32	12 1/8
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 19/32	12 1/8
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 19/32	12 1/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 19/32	12 1/8
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 15/32	13 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 15/16	13 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 15/16	13 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 15/16	13 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 15/16	13 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	4 1/16	15
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	4 1/16	15
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	4 1/16	15
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	4 1/16	15
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	4 1/16	15

* Add the stroke to the dimension marked with an asterisk.

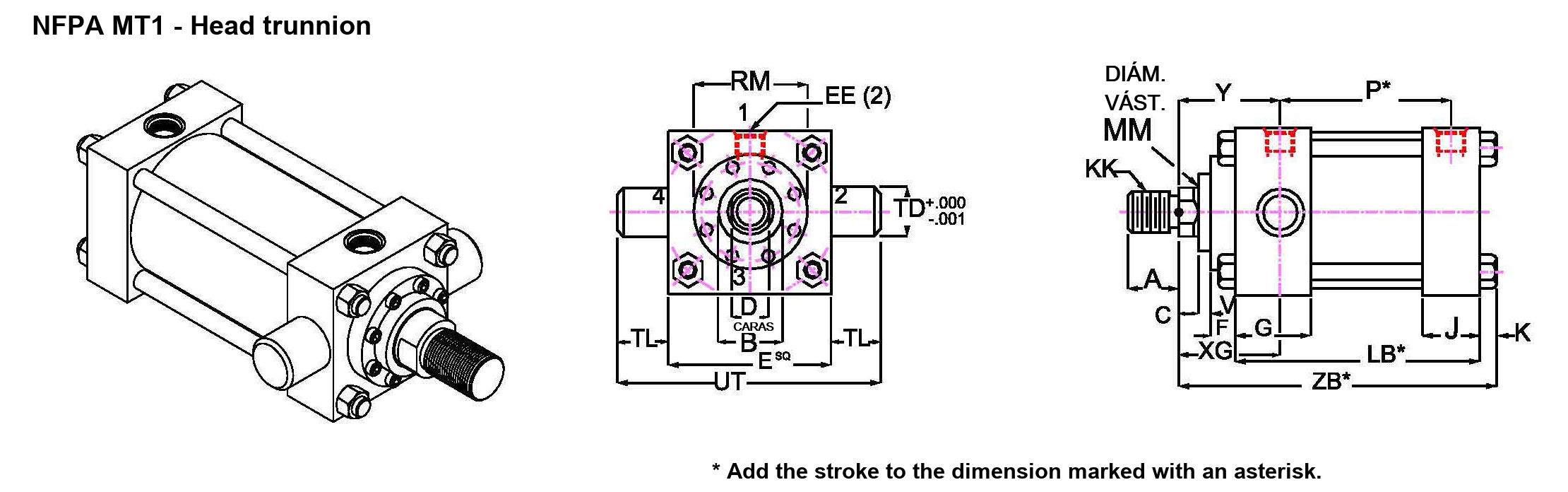

NFPA MT1

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	TD	TL	UT
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	1	1	4 1/2
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	1 3/8	1 3/8	5 3/4
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	1 3/8	1 3/8	6 1/4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	1 3/4	1 3/4	8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	1 3/4	1 3/4	8 1/2
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	1 3/4	1 3/4	10
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	2	2	11 1/2
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	2 1/2	2 1/2	13 1/2
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	3	3	15 1/2

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	XG	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	1 7/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	2 1/4	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	2 1/4	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 1/2	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 1/4	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 1/2	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 3/4	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 5/8	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	2 7/8	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	3	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	2 7/8	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 1/4	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 1/4	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 1/4	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 1/4	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 3/8	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 3/8	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 3/8	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 3/8	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 5/8	3 15/32	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 5/8	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 5/8	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 5/8	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 5/8	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 3/4	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 3/4	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 3/4	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 3/4	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	3 3/4	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

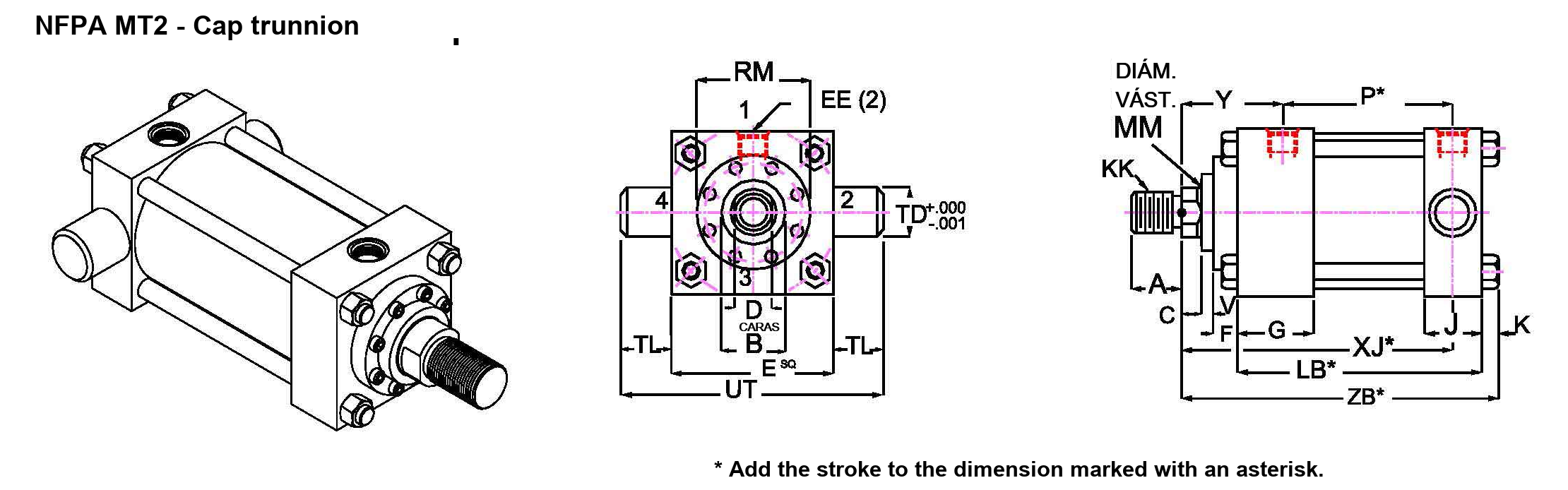

NFPA MT2

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	TD	TL	UT
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	1	1	4 1/2
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	1 3/8	1 3/8	5 3/4
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	1 3/8	1 3/8	6 1/4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	1 3/4	1 3/4	8
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	1 3/4	1 3/4	8 1/2
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	1 3/4	1 3/4	10
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	2	2	11 1/2
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	2 1/2	2 1/2	13 1/2
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	3	3	15 1/2

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	XJ*	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	4 7/8	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	5 1/4	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	5 1/4	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	5 1/2	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	5 3/8	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	5 5/8	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	5 7/8	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	6 1/4	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	6 1/2	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	6 5/8	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	6 3/4	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	6 7/8	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	7 1/8	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	7 3/8	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	7 5/8	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	7 5/8	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	7 5/8	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	8 3/8	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	8 3/8	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	8 3/8	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	8 3/8	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	9 3/8	3 15/32	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	9 3/8	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	9 3/8	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	9 3/8	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	9 3/8	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	10 1/4	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	10 1/4	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	10 1/4	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	10 1/4	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	10 1/4	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

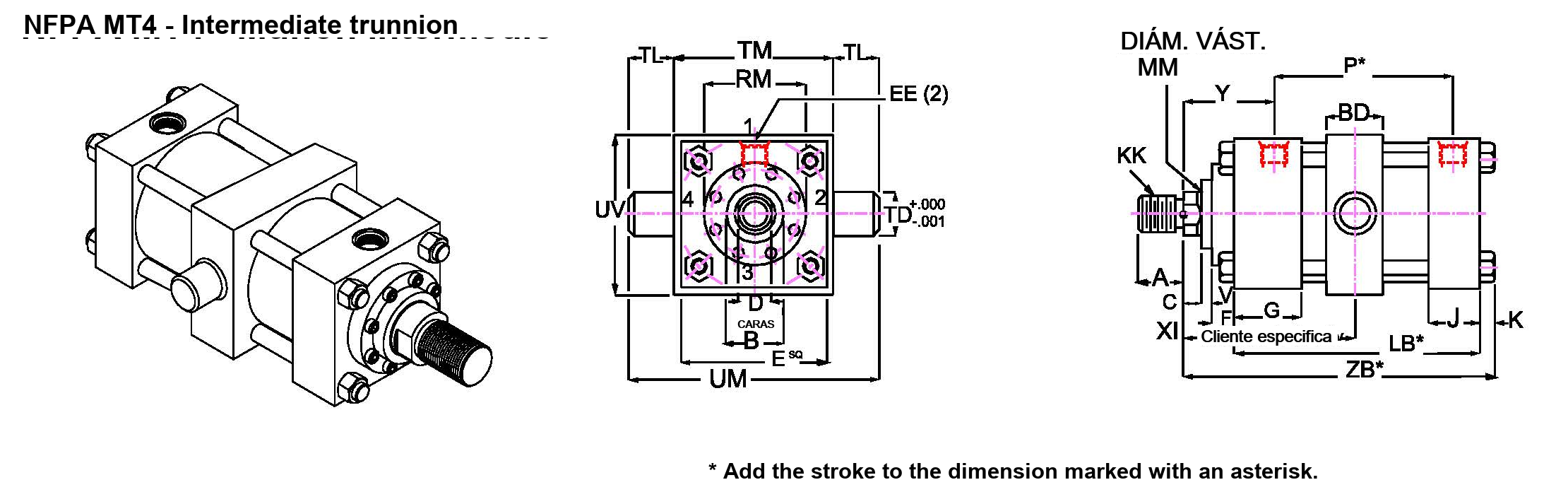

NFPA MT4

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	BD	TD	TL	TM	UM	UV
1 1/2	2 1/2	8	1/2	1 3/4	1 1/2	3/8	4 5/8	2 11/16	1 1/2	1	1	3	5	3
2	3	8	1/2	1 3/4	1 1/2	7/16	4 5/8	2 11/16	1 1/2	1 3/8	1.375	3 1/2	6.25	3 1/2
2 1/2	3 1/2	8	1/2	1 3/4	1 1/2	7/16	4 3/4	2 13/16	1 1/2	1 3/8	1.375	4	6.75	4
3 1/4	4 1/2	12	3/4	2	1 3/4	9/16	5 1/2	3 9/16	2	1 3/4	1.75	5	8.5	5
4	5	12	3/4	2	1 3/4	9/16	5 3/4	3 13/16	2	1 3/4	1.75	5 1/2	9	5 1/2
5	6 1/2	12	3/4	2	1 3/4	13/16	6 1/4	4 5/16	2 1/2	1 3/4	1.75	7	10.5	7
6	7 1/2	16	1	2 1/4	2 1/4	15/16	7 3/8	4 11/16	3	2	2	8 1/2	12.5	8 1/2
7	8 1/2	20	1 1/4	2 3/4	2 3/4	1	8 1/2	5 1/8	3	2 1/2	2.5	9 3/4	14.75	9 3/4
8	9 1/2	24	1 1/2	3	3	1 1/8	9 1/2	5 7/8	3 1/2	3	3	11	17	11

Rod end dimensions
Bore	MM	KK	CC	A	B −.001/−.003	C	D	F	RM	V	Y	ZB*
1 1/2	5/8	7/16-20	1/2-20	3/4	1 1/8	3/8	1/2	3/8	1 15/16	1/4	2 15/32	6
1 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/2	2 15/32	6 3/8
2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	1/4	2 15/32	6 7/16
2	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 23/32	6 11/16
2 1/2	1	3/4-16	7/8-14	1 1/8	1 1/2	1/2	7/8	3/8	2 3/8	3/8	2 15/32	6 9/16
	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	3/8	2 23/32	6 13/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	1/2	2 31/32	7 1/16
3 1/4	1 3/8	1-14	1 1/4-12	1 5/8	2	5/8	1 1/8	3/8	2 7/8	13/32	2 23/32	7 11/16
	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	3/8	2 31/32	7 15/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	3/8	3 3/32	8 1/16
4	1 3/4	1 1/4-12	1 1/2-12	2	2 3/8	3/4	1 1/2	5/8	3 15/32	17/32	2 31/32	8 3/16
	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 3/32	8 5/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 11/32	8 9/16
5	2	1 1/2-12	1 3/4-12	2 1/4	2 5/8	7/8	1 11/16	5/8	3 23/32	17/32	3 3/32	9 1/16
	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 11/32	9 5/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 11/32	9 5/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 11/32	9 5/16
6	2 1/2	1 7/8-12	2 1/4-12	3	3 1/8	1	2 1/16	5/8	4 1/4	21/32	3 19/32	10 9/16
	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 19/32	10 9/16
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 19/32	10 9/16
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 19/32	10 9/16
7	3	2 1/4-12	2 3/4-12	3 1/2	3 3/4	1	2 5/8	7/8	5 7/16	17/32	3 15/32	11 3/4
	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	3 15/16	11 3/4
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	3 15/16	11 3/4
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	3 15/16	11 3/4
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	3 15/16	11 3/4
8	3 1/2	2 1/2-12	3 1/4-12	3 1/2	4 1/4	1	3	15/16	5 15/16	17/32	4 1/16	12 7/8
	4	3-12	3 3/4-12	4	4 3/4	1	3 3/8	15/16	6 5/16	3/8	4 1/16	12 7/8
	4 1/2	3 1/4-12	4 1/4-12	4 1/2	5 1/4	1	3 7/8	15/16	6 15/16	3/8	4 1/16	12 7/8
	5	3 1/2-12	4 3/4-12	5	5 3/4	1	4 1/4	15/16	7 7/16	3/8	4 1/16	12 7/8
	5 1/2	4-12	5 1/4-12	5 1/2	6 1/4	1	4 5/8	15/16	7 15/16	3/8	4 1/16	12 7/8

* Add the stroke to the dimension marked with an asterisk.

ACCESSORIES 1

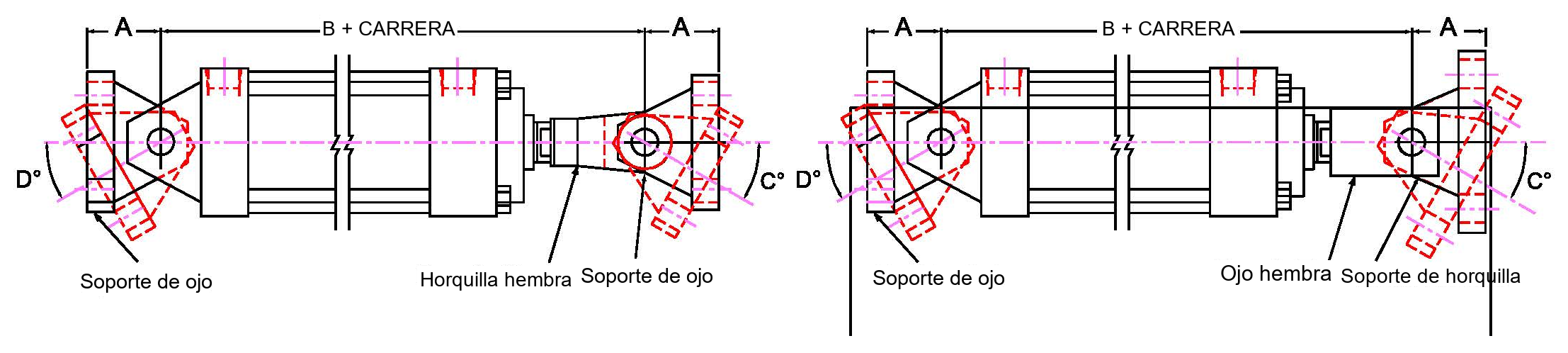

Cylinder assembly with eye bracket, female clevis, clevis bracket, and female eye; dimensions A, B + stroke, C° and D°

Mounting accessories: dimensions and part numbers by bore
Bore	A	B	Eye bracket	Female clevis	Clevis bracket	Female eye	Pivot pin	C°	D°
1 1/2	1 1/8	7 7/8	EB -1003	FC -1005	CB -1003	FE -1003	PP -1003	90°	60°
2	1 7/8	9 5/8	EB -1004	FC -1008	CB -1004	FE -1004	PP -1004	90°	65°
2 1/2	1 7/8	9 3/4	EB -1004	FC -1008	CB -1005	FE -1004	PP -1004	90°	65°
3 1/4	2 3/8	11 3/4	EB -1006	FC -1011	CB -1006	FE -1006	PP -1006	80°	65°
4	3	13 7/8	EB -1008	FC -1014	CB -1008	FE -1008	PP -1008	90°	70°
5	3 3/8	15	EB -1010	FC -1016	CB -1010	FE -1010	PP -1010	75°	65°
6	4	17 5/8	EB -1012	FC -1020	CB -1012	FE -1012	PP -1012	75°	65°
7	4	20 1/4	EB -1014	FC -1024	CB -1014	FE -1014	PP -1014	70°	65°
8	4 1/4	21 3/4	EB -1016	FC -1028	CB -1016	FE -1016	PP -1016	70°	65°
10	5 11/16	27 9/16	EB -1020	FC -1036	CB -1020	FE -1020	PP -1020	70°	60°
12	6 7/16	32 3/16	EB -1024	FC -1044	CB -1024	FE -1024	PP -1024	65°	60°

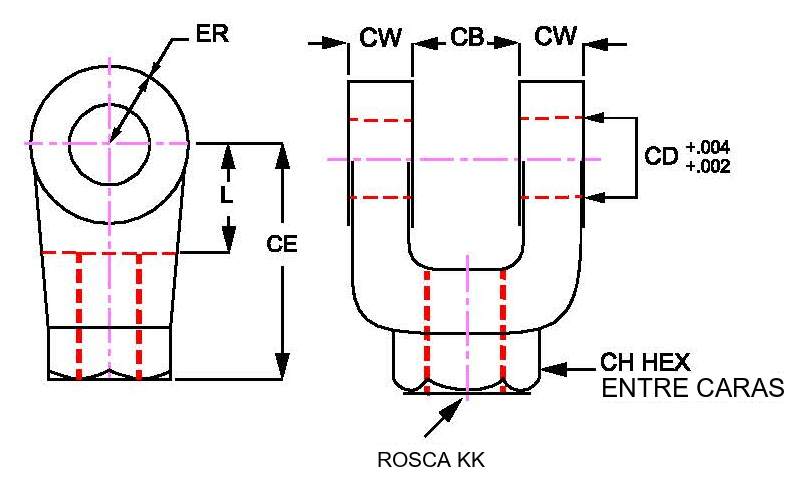

Female clevis (FC): dimensions ER, CW, CB, CD, CE, CH, KK, and L

Female clevis (FC)
Part no.	CB	CD +.004/+.002	CE	CH	CW	ER	KK	L
FC -1005	3/4	1/2	1 1/2	7/8	1/2	1/2	7/16-20	3/4
FC -1008	1 1/4	3/4	2 3/8	1 3/8	5/8	3/4	3/4-16	1 1/4
FC -1011	1 1/2	1	3 1/8	1 5/8	3/4	1	1-14	1 1/2
FC -1014	2	1 3/8	4 1/8	2	1	1 3/8	1 1/4-12	2 1/8
FC -1016	2 1/2	1 3/4	4 1/2	2 3/8	1 1/4	1 3/4	1 1/2-12	2 1/4
FC -1020	2 1/2	2	5 1/2	2 15/16	1 1/4	2	1 7/8-12	2 1/2
FC -1024	3	2 1/2	6 1/2	3 1/2	1 1/2	2 1/2	2 1/4-12	3
FC -1028	3	3	6 3/4	3 7/8	1 1/2	2 3/4	2 1/2-12	3 1/4
FC -1036	4	3 1/2	8 1/2	5	2	3 1/2	3 1/4-12	4
FC -1044	4 1/2	4	10	6 1/8	2 1/4	4	4-12	4 1/2

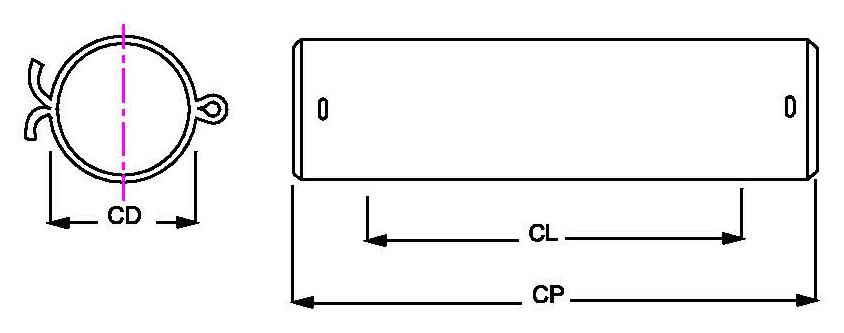

Pivot pin (PP): dimensions CD, CL, and CP

Pivot pin (PP)
Part no.	CD	CL	CP
PP -1003	1/2	1 3/4	2 3/8
PP -1004	3/4	2 1/2	3 1/8
PP -1006	1	3	3 3/4
PP -1008	1 3/8	4	4 3/4
PP -1010	1 3/4	5	6 1/32
PP -1012	2	5	6 1/32
PP -1014	2 1/2	6	7 1/32
PP -1016	3	6	7 1/8
PP -1020	3 1/2	8	9 5/8
PP -1024	4	9	10 5/8

B + stroke. Dimensions in inches.

ACCESSORIES 2

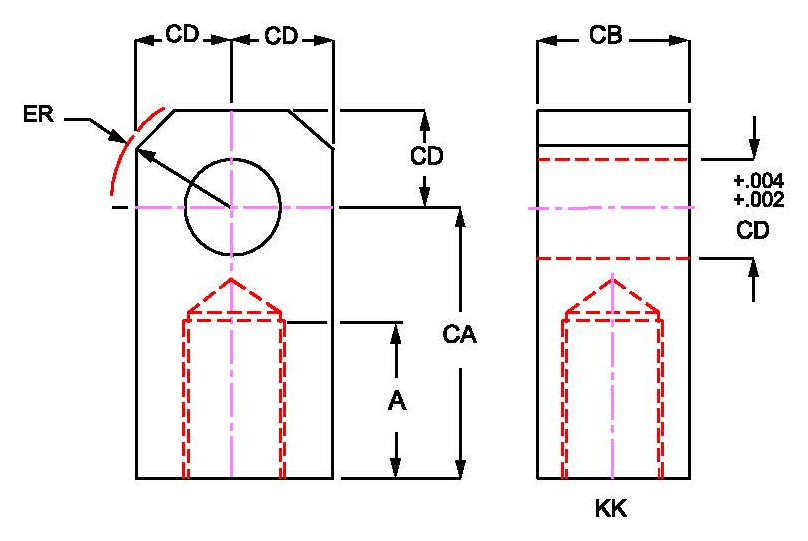

Female eye (FE): dimensions A, CA, CB, CD, ER, and KK

Female eye (FE)
Part no.	A	CA	CB	CD	ER	KK
FE-1002	3/4	1 1/2	7/16	7/16	19/32	5/16-24
FE-1003	3/4	1 1/2	3/4	1/2	5/8	7/16-20
FE-1004	1 1/8	2 1/16	1 1/4	3/4	7/8	3/4-16
FE-1006	1 5/8	2 13/16	1 1/2	1	1 3/16	1-14
FE-1008	2	3 7/16	2	1 3/8	1 9/16	1 1/4-12
FE-1010	2 1/4	4	2 1/2	1 3/4	2	1 1/2-12
FE-1012	3	5	2 1/2	2	2 1/4	1 7/8-12
FE-1014	3 1/2	5 13/16	3	2 1/2	2 13/16	2 1/4-12
FE-1016	3 1/2	6 1/8	3	3	3 1/4	2 1/2-12
FE-1020	4 1/2	7 5/8	4	3 1/2	3 7/8	3 1/4-12
FE-1024	5 1/2	9 1/8	4 1/2	4	4 7/16	4-12

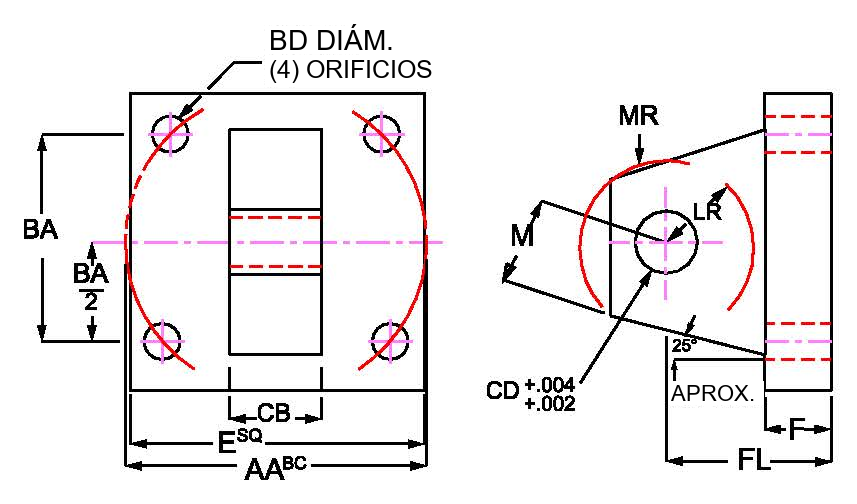

Eye bracket (EB): dimensions AA, BA, BD, CB, CD, E, F, FL, LR, M, and MR

Eye bracket (EB)
Part no.	AA	BA	BD	CB	CD +.004/+.002	E	F	FL	LR	M	MR
EB -1003	2.3	1 5/8	13/32	3/4	1/2	2 1/2	3/8	1 1/8	1/2	1/2	9/16
EB -1004	3.6	2 9/16	17/32	1 1/4	3/4	3 1/2	5/8	1 7/8	1	3/4	1 1/16
EB -1006	4.6	3 1/4	21/32	1 1/2	1	4 1/2	7/8	2 3/8	1	1	1 1/8
EB -1008	5.4	3 13/16	21/32	2	1 3/8	5	7/8	3	1 1/8	1 3/8	1 3/4
EB -1010	7.0	4 15/16	29/32	2 1/2	1 3/4	6 1/2	1 1/8	3 3/8	1 3/4	1 3/4	1 7/8
EB -1012	8.1	5 3/4	1 1/32	2 1/2	2	7 1/2	1 1/2	4	2	2	2 1/8
EB -1014	9.3	6 19/32	1 5/32	3	2 1/2	8 1/2	1 3/4	4 3/4	2 1/2	2 1/2	2 1/2
EB -1016	10.6	7 1/2	1 9/32	3	3	9 1/2	2	5 1/4	2 3/4	2 3/4	2 3/4
EB -1020	13.6	9 5/8	1 25/32	4	3 1/2	12 5/8	1 11/16	5 11/16	3 1/2	3 1/2	3 1/2
EB -1024	16.2	11 1/2	2 1/32	4 1/2	4	14 7/8	1 15/16	6 7/16	3 7/8	4	4

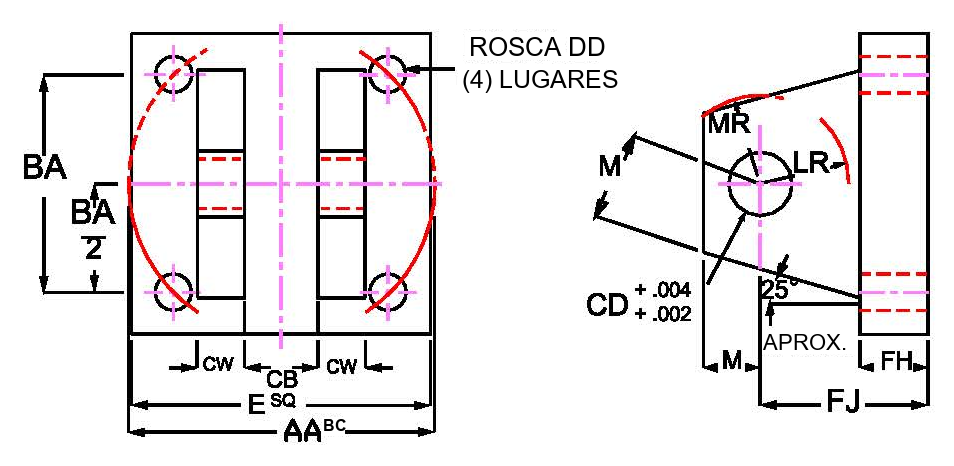

Clevis bracket (CB): dimensions AA, BA, CB, CD, CW, DD, E, FH, FJ, LR, M, and MR

Clevis bracket (CB)
Part no.	AA	BA	CB	CD +.004/+.002	CW	DD	E	FH	FJ	LR	M	MR
CB -1003	2.3	1 5/8	25/32	1/2	1/2	3/8-24	2 1/2	3/8	1 1/8	1/2	1/2	9/16
CB -1004	2.9	2 1/16	1 9/32	3/4	5/8	1/2-20	3	5/8	1 7/8	1	3/4	1 1/16
CB -1005	3.6	2 9/16	1 9/32	3/4	5/8	1/2-20	3 1/2	5/8	1 7/8	1 1/16	3/4	1 1/16
CB -1006	4.6	3 1/4	1 17/32	1	3/4	5/8-18	4 1/2	3/4	2 1/4	1 1/4	1	1 1/8
CB -1008	5.4	3 13/16	2 1/32	1 3/8	1	5/8-18	5	7/8	3	1 7/8	1 3/8	1 3/4
CB -1010	7.0	4 15/16	2 17/32	1 3/4	1 1/4	7/8-14	6 1/2	7/8	3 1/8	2	1 3/4	1 7/8
CB -1012	8.1	5 3/4	2 17/32	2	1 1/4	1-14	7 1/2	1	3 1/2	2 1/8	2	2 1/8
CB -1014	9.3	6 19/32	3 1/32	2 1/2	1 1/2	1 1/8-12	8 1/2	1	4	2 5/8	2 1/2	2 1/2
CB -1016	10.6	7 1/2	3 1/32	3	1 1/2	1 1/4-12	9 1/2	1	4 1/4	2 7/8	2 3/4	2 3/4
CB -1020	13.6	9 5/8	4 1/16	3 1/2	2	1 3/4-12	12 5/8	1 11/16	5 11/16	3 5/8	3 1/2	3 1/2
CB -1024	16.2	11 1/2	4 9/16	4	2 1/4	2-12	14 7/8	1 15/16	6 7/16	4	4	4

Dimensions in inches.

SEAL KITS

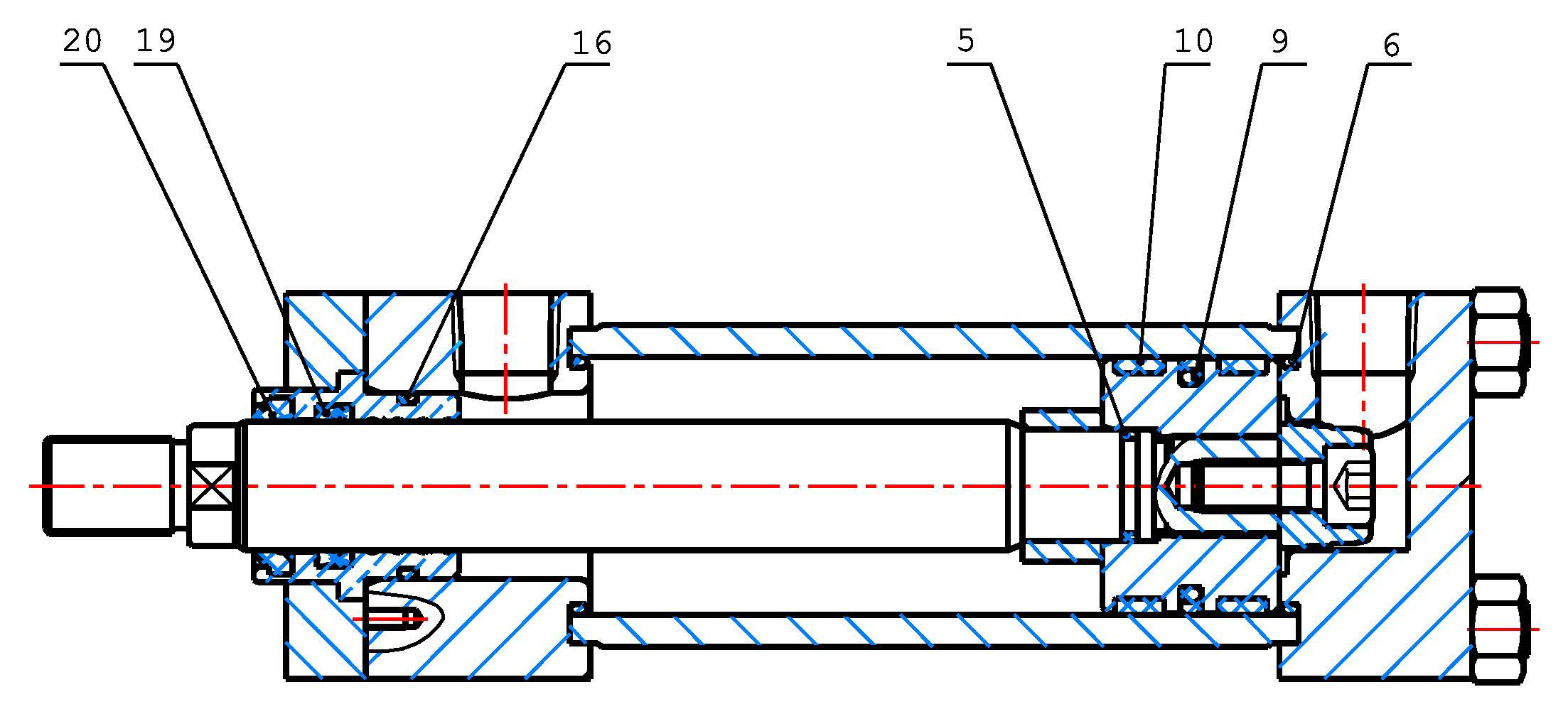

Cylinder section with numbered seal parts: 20, 19, 16, 5, 10, 9, and 6

Seal part identification
Part no.	Description	Parker seal type
20	Rod wiper	SHD
19	Rod seal	BPP - B PolyPak
10	Wear ring *	0401 PDT
16	Rod bushing O-ring	4300 568
6	Tube O-ring (2)	4300 568
9	Piston seal	OE
5	Piston O-ring	4300 568

* The quantity of part no. 10 depends on the cylinder bore
Bore	Quantity
1 1/2 - 3 1/4	1
4 - 10	2
12 - 20	4

Seal kits
Model no.	Description
SK-H01500063	Seal kit, bore 1 1/2" x rod 5/8"
SK-H01500100	Seal kit, bore 1 1/2" x rod 1"
SK-H02000100	Seal kit, bore 2" x rod 1"
SK-H02000138	Seal kit, bore 2" x rod 1 3/8"
SK-H02500100	Seal kit, bore 2 1/2" x rod 1"
SK-H02500138	Seal kit, bore 2 1/2" x rod 1 3/8"
SK-H02500175	Seal kit, bore 2 1/2" x rod 1 3/4"
SK-H03250138	Seal kit, bore 3 1/4" x rod 1 3/8"
SK-H03250175	Seal kit, bore 3 1/4" x rod 1 3/4"
SK-H03250200	Seal kit, bore 3 1/4" x rod 2"
SK-H04000175	Seal kit, bore 4" x rod 1 3/4"
SK-H04000200	Seal kit, bore 4" x rod 2"
SK-H04000250	Seal kit, bore 4" x rod 2 1/2"

NFPA - Bore 10" - 20"

Part numbers

Index

NFPA ME5 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	R	TF	UF
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1 13/16	9.62	15 7/8	19
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	2 1/16	11.45	18 1/2	22
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	2 5/16	13.26	21	25

Rod end styles: 1, male KK; 2, female KK

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	21 17/32

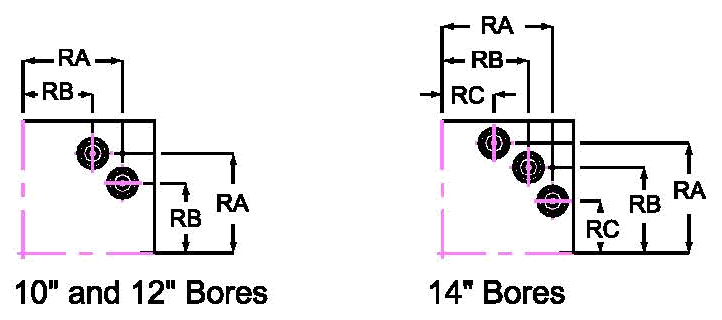

Tie rod position: bores 10" and 12", and bore 14"

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MF5 (10"~20")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	EB	EX	RE	TE
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1 5/16	16 5/8	9.89	14.13
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1 9/16	19 3/4	11.75	16.79
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	1 13/16	21 3/4	12.90	18.43
16	19	24	-	5 7/8	5 7/8	1 29/32	18 1/8	12 1/8	1 13/16	24 1/2	15.28	21.03
18	22	24	-	6 7/8	6 7/8	1 29/32	21 1/8	15 1/8	2 1/16	26 1/2	16.45	22.65
20	24	24	-	7 7/8	7 7/8	1 29/32	23 5/8	17 5/8	2 1/16	29	18.07	24.87

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	21 17/32
16	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	7	24 1/32
	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	24 9/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	24 17/32
18	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	27 9/32
18	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	27 17/32
20	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	30 1/32

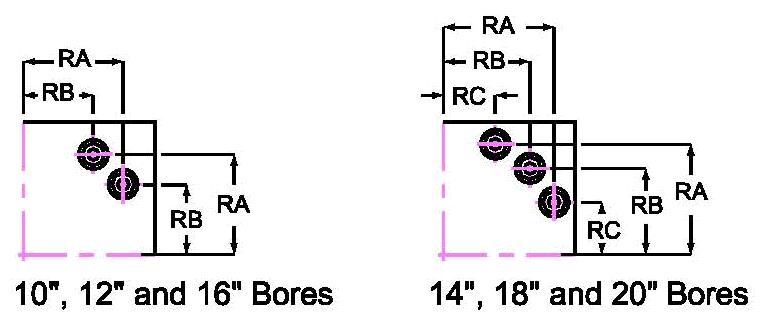

Tie rod position: bores 10", 12", and 16", and bores 14", 18", and 20"

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12
16	8.086	6.093	—	1 1/2-12
18	9.589	7.910	5.761	1 1/2-12
20	10.437	8.750	6.649	1 1/2-12

* Add the stroke to the dimension marked with an asterisk.

NFPA ME6 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	FB	R	TF	UF
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1 13/16	9.62	15 7/8	19
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	2 1/16	11.45	18 1/2	22
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	2 5/16	13.26	21	25

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XF*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	15 1/16
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	15 5/16
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	15 5/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	15 5/8
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	17 11/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	18
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	18 1/2
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	19 1/8
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	19 5/8
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	20 1/8

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MF6 (10"~20")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	EB	EX	RE	TE
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1 5/16	16 5/8	9.89	14.13
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1 9/16	19 3/4	11.75	16.79
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	1 13/16	21 3/4	12.90	18.43
16	19	24	-	5 7/8	5 7/8	1 29/32	18 1/8	12 1/8	1 13/16	24 1/2	15.28	21.03
18	22	24	-	6 7/8	6 7/8	1 29/32	21 1/8	15 1/8	2 1/16	26 1/2	16.45	22.65
20	24	24	-	7 7/8	7 7/8	1 29/32	23 5/8	17 5/8	2 1/16	29	18.07	24.87

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XF*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	15 1/16
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	15 5/16
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	15 5/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	15 5/8
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	17 11/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	18
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	18 1/2
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	19 1/8
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	19 5/8
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	20 1/8
16	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	7	22 1/8
	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	22 3/8
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	22 5/8
18	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	25 3/8
18	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	25 5/8
20	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	28 1/8

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12
16	8.086	6.093	—	1 1/2-12
18	9.589	7.910	5.761	1 1/2-12
20	10.437	8.750	6.649	1 1/2-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MS2 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	SB	SS*	ST	SU	SW	TS	US
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1 9/16	8 7/8	2 1/4	3 1/2	1 5/8	15 7/8	19 1/8
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1 9/16	10 1/2	3	4 1/4	2	18 7/8	22 7/8
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	2 5/16	11 1/8	4	4 3/4	2 1/4	21 5/8	26 1/8

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XS	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	4 9/16	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	4 13/16	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	4 13/16	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	5 1/8	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	5 3/16	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	5 1/2	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	6	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	5 3/4	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	6 1/4	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	6 3/4	21 17/32

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MP1 (10"~20")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	CB	CD +.001/−.003	CW	L	LR	M	MR
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	4	3.500	2	4	3 3/8	3 1/2	3 1/2
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	4 1/2	4.000	2 1/4	4 1/2	3 7/8	4	4
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	6	5.000	3	5 3/4	4 3/16	5	5
16	19	24	-	5 7/8	5 7/8	1 29/32	18 1/8	12 1/8	7	6.000	3 1/2	7	6 1/4	6	6
18	22	24	-	6 7/8	6 7/8	1 29/32	21 1/8	15 1/8	8	6.500	4	7 5/8	6 3/4	6 1/2	6 1/2
20	24	24	-	7 7/8	7 7/8	1 29/32	23 5/8	17 5/8	9	7.500	4 1/2	8 3/4	7 3/4	7 1/2	7 1/2

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XC*	ZC*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	19 1/16	22 9/16
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	19 5/16	22 13/16
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	19 5/16	22 13/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	19 5/8	23 1/8
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	22 3/16	26 3/16
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	22 1/2	26 1/2
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	23	27
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	24 7/8	29 7/8
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	25 3/8	30 3/8
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	25 7/8	30 7/8
16	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	7	29 1/8	35 1/8
	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	29 3/8	35 3/8
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	29 5/8	35 5/8
18	9	6 1/2-12	9	9.999	1	1 15/16	13 1/4	8 7/8	13 1/2	3/8	4 1/4	7 1/4	33	39 1/2
18	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	33 1/4	39 3/4
20	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	7 1/2	36 7/8	44 3/8

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12
16	8.086	6.093	—	1 1/2-12
18	9.589	7.910	5.761	1 1/2-12
20	10.437	8.750	6.649	1 1/2-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MT1 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	MAX PRESSURE PSI	TD −.000/−.001	TL	UT
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1600	3.500	3 1/2	19 5/8
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1500	4.000	4	22 7/8
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	1400	4.500	4 1/2	26 1/8

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XG	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	4 3/4	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	5	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	5	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	5 5/16	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	5 3/8	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	5 11/16	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	6 3/16	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	5 15/16	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	6 7/16	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	6 15/16	21 17/32

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MT2 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	MAX PRESSURE PSI	TD −.000/−.001	TL	UT
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1600	3.500	3 1/2	19 5/8
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1500	4.000	4	22 7/8
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	1400	4.500	4 1/2	26 1/8

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	XJ	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	13 3/8	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	13 15/16	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	13 5/8	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	13 5/8	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	15 1/2	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	16 5/16	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	15 13/16	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	16 11/16	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	17 11/16	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	17 3/16	21 17/32

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

NFPA MT4 (10"~14")

Body dimensions
Bore	E	EE (SAE)	EE (NPTF)	G	J	K	LB*	P*	MAX PRESSURE PSI	TD −.000/−.001	TL	TM	TY	UM	UW
10	12 5/8	24	2	3 11/16	3 11/16	1 9/32	12 1/8	8 1/2	1600	3.500	3 1/2	14	13	21	17 1/2
12	14 7/8	24	2 1/2	4 7/16	4 7/16	1 13/32	14 1/2	10 1/8	1500	4.000	4	16 1/2	15 1/2	24 1/2	20 3/4
14	17 1/8	24	2 1/2	4 7/8	4 7/8	1 13/32	15 5/8	10 7/8	1400	4.500	4 1/2	19 1/2	19 1/4	28 1/2	24 3/4

Rod end dimensions
Bore	MM	KK	A	B −.001/−.005	C	F	LAF	NA	RD	V	WF	Y	ZB*
10	4 1/2	3 1/4-12	4 1/2	5.249	1	1 15/16	7 7/16	4 3/8	8 1/4	1/4	2 15/16	4 3/4	16 11/32
	5	3 1/2-12	5	5.749	1	1 15/16	8 3/16	4 7/8	8 7/8	1/4	3 3/16	5	16 19/32
	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5	16 19/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 5/16	16 29/32
12	5 1/2	4-12	5 1/2	6.249	1	1 15/16	8 11/16	5 3/8	9 3/8	1/4	3 3/16	5 3/8	19 3/32
	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 11/16	19 13/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/16	19 29/32
14	7	5-12	7	7.999	1	1 15/16	10 1/2	6 7/8	10 1/2	3/8	3 1/2	5 7/8	20 17/32
	8	5 3/4-12	8	8.999	1	1 15/16	12	7 7/8	12 1/2	3/8	4	6 3/8	21 1/32
	10	7 1/4-12	10	10.999	1	1 15/16	14 1/2	9 7/8	14 1/2	3/8	4 1/2	6 7/8	21 17/32

Tie rod dimensions
Bore	RA	RB	RC	TIE ROD THREAD
10	5.291	3.775	—	1 1/8-12
12	6.270	4.555	—	1 1/4-12
14	7.485	6.143	4.409	1 1/4-12

* Add the stroke to the dimension marked with an asterisk.

** Dimension XI must be specified by the customer.

Applications

NFPA Hydraulic Cylinders: Industrial Applications, Specifications, and Replacement Options

Industrial Hydraulic Cylinders for Machinery and Equipment

At Technical Union (TU), we offer NFPA-style industrial hydraulic cylinders for applications requiring standardized mounting dimensions, reliable performance, and configuration options for different types of equipment and manufacturing processes.

NFPA hydraulic cylinders are used to generate linear motion, push, pull, clamp, lift, and position components in industrial hydraulic systems. They are a solution for machinery manufacturers, maintenance departments, hydraulic component distributors, and automation integrators who need to replace existing cylinders or specify cylinders for new equipment.

We serve industrial buyers in Latin America looking for hydraulic cylinder solutions supplied from the United States, with configuration options based on the requirements of each application.

Industrial Applications for NFPA Hydraulic Cylinders

Industrial hydraulic cylinders are used in a wide variety of machines and production systems, including:

Hydraulic presses: Moving platens, clamping, pressing, and material forming.
Plastic injection molding machines: Actuating mechanisms, opening and closing, and auxiliary movements.
Machine tools: Positioning, clamping, and actuating machine components.
Metalworking equipment: Forming, bending, and material handling systems.
Automated production lines: Linear movement and positioning of mechanisms.
Industrial assembly equipment: Clamping, pushing, and moving components.
Material handling systems: Actuating mechanisms and controlled movement.
Special industrial machinery: Equipment designed for specific manufacturing and processing operations.

Cylinder selection depends on the required force, stroke, available space, operating conditions, and characteristics of the hydraulic system.

NFPA Hydraulic Cylinder Replacements and Cross-Reference Options

If you need to replace an industrial hydraulic cylinder, we can help evaluate replacement options for equipment using cylinders from different manufacturers, including Parker, Bosch Rexroth, Rexroth, Vickers, and Danfoss.

We can also evaluate requests involving other industrial hydraulic cylinder brands. Replacement suitability depends on the original cylinder's specifications and the requirements of the machine.

To identify a suitable alternative, provide the original part number, dimensional drawing, a photograph of the identification plate, or measurements of the existing cylinder.

The most important information for evaluating a replacement includes:

Cylinder bore diameter.
Rod diameter.
Stroke length.
Mounting style and mounting dimensions.
Hydraulic port type, size, and location.
Required operating pressure.
Rod-end configuration.
Cushioning requirements and special modifications.

Important: Mentioning a manufacturer does not mean that all of its cylinders are directly interchangeable with an NFPA cylinder. Compatibility must be verified based on dimensions, connections, operating pressure, and application requirements.

NFPA Cylinder Dimensions and Configurations

Dimensional standardization helps simplify the specification and evaluation of industrial hydraulic cylinders. However, the measurements and characteristics of each configuration must be verified before selecting a replacement.

On our page, you will find technical information and dimensional tables to help identify the cylinder configuration you need.

Key selection parameters include:

Bore diameter: Determines the piston's effective area and contributes to the available force at a given pressure.
Rod diameter: Affects rod strength and operating characteristics.
Stroke length: Determines how far the rod can travel.
Mounting style: Defines how the cylinder attaches to the machine.
Hydraulic connections: Must match the piping system and installation requirements.
Cushioning: Can help control movement at the end of the stroke when required by the application.
Operating pressure: Must be suitable for the hydraulic system and selected cylinder configuration.

The technical information on TU's page includes available configurations and dimensional tables to help identify a cylinder and review its dimensions.

NFPA Hydraulic Cylinder Mounting Styles

Mounting is an essential factor when selecting a replacement cylinder. Even when two cylinders have similar bore diameters and stroke lengths, differences in mounting dimensions may prevent one from directly replacing the other.

The mounting codes shown among TU's NFPA cylinder configurations include:

MX1, MX2, and MX3: Flange mounting configurations.
MF1, MF2, MF5, and MF6: Flange mounting configurations.
ME5 and ME6: Flange mounting configurations.
MS2, MS3, MS4, and MS7: Foot mounting configurations.
MT1, MT2, and MT4: Trunnion mounting configurations.
MP1: Pivot mounting configuration.

Refer to the corresponding dimensional tables to verify mounting measurements and determine which configuration fits your machine. Do not select a replacement based on the mounting code alone; all other relevant parameters must also be checked.

How to Read an NFPA Hydraulic Cylinder Part Number

A part number helps identify a cylinder's configuration. TU's page provides the following example:

H-MF5-3.25X1.38X25.25-N-1-S-11-S

This example illustrates how different data elements can be combined to describe a hydraulic cylinder.

According to the numbering structure presented on our page, the components identify characteristics such as:

Series: Cylinder family.
Mounting: Mounting configuration.
Bore diameter: Cylinder bore size.
Rod diameter: Rod size.
Stroke: Rod travel.
Cushioning: Cushioning at one or both ends, or no cushioning.
Rod end: Mechanical connection type.
Hydraulic connections: Port type.
Port location: Position of the ports at the cylinder ends.
Options: Standard configuration or special modification.

The codes and their meanings should be verified against the corresponding part-number table. If you have an existing part number, send it to us so we can help identify the relevant specifications.

Hydraulic Cylinders for Industrial Maintenance and Manufacturing

Industrial buyers may need hydraulic cylinders for corrective maintenance, machinery repair, replacement of worn components, or the manufacture of new equipment.

Technical Union helps distributors, machinery manufacturers, and industrial users evaluate options based on their application requirements. If you do not have the part number, you can also provide photographs, measurements, drawings, or information about the machine in which the cylinder will be installed.

When requesting an evaluation, provide as much information as possible about the original cylinder and its operating conditions. This helps establish the dimensional and functional requirements before selecting an alternative.

Request Information About NFPA Hydraulic Cylinders

Are you looking for NFPA hydraulic cylinders for industrial machinery, or do you need to replace an existing cylinder?

Contact Technical Union to inquire about industrial cylinder options, share your application specifications, and evaluate potential replacements for equipment using Parker, Rexroth, Vickers, Danfoss, and other brands.

Send us the part number, dimensions, or drawing of the cylinder you need to replace. Our team can help you review the technical information needed to identify a suitable option.

Technical Union serves industrial buyers and distributors throughout Latin America looking for hydraulic component solutions supplied from the United States.

NFPA Cylinders

How to order the cylinder

Series

Mount

Bore

Rod

Stroke

Cushion

Rod end

Ports

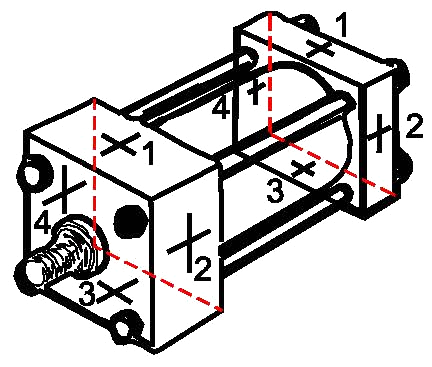

Port location — 11

Options

Standard specifications

How to order the cylinder

Series

Mount

Bore

Rod

Stroke

Cushion

Rod end

Ports

Port location — 11

Options

Standard specifications

NFPA Hydraulic Cylinders: Industrial Applications, Specifications, and Replacement Options

Industrial Hydraulic Cylinders for Machinery and Equipment

Industrial Applications for NFPA Hydraulic Cylinders

NFPA Hydraulic Cylinder Replacements and Cross-Reference Options

NFPA Cylinder Dimensions and Configurations

NFPA Hydraulic Cylinder Mounting Styles

How to Read an NFPA Hydraulic Cylinder Part Number

Hydraulic Cylinders for Industrial Maintenance and Manufacturing

Request Information About NFPA Hydraulic Cylinders

Contact us for any technical requirements.
