Special & Telescopic Hydraulic Cylinders

* Cylinder application

Single or double-acting

O.D. of largest moving sleeve

Number of moving sleeves

Chrome or non-chrome sleeves

Side or eccentric loading

Mounting conditions

Incline angle

Fluid type

System operating pressure (psi)

System flow (GPM)

Operating temperature

Load holding requirements

* A – Total stroke

B – Retracted length

C – Extended length

D – Base mount radius

E – Base mount pin diameter

F – Plunger mount radius

G – Plunger mount pin diameter

H – Plunger mount length

I – Base mount length

J – Packing nut to pin

K – O.D. of main barrel

L – Base mount width I

M – Base mount width II

N – Plunger mount width

O – Plunger mount diameter

Extend port (size and type)

Extend port location

Retract port (size and type)

Retract port location

* Quote quantity

* Contact name

Company

* Email

Phone

Special Cylinders

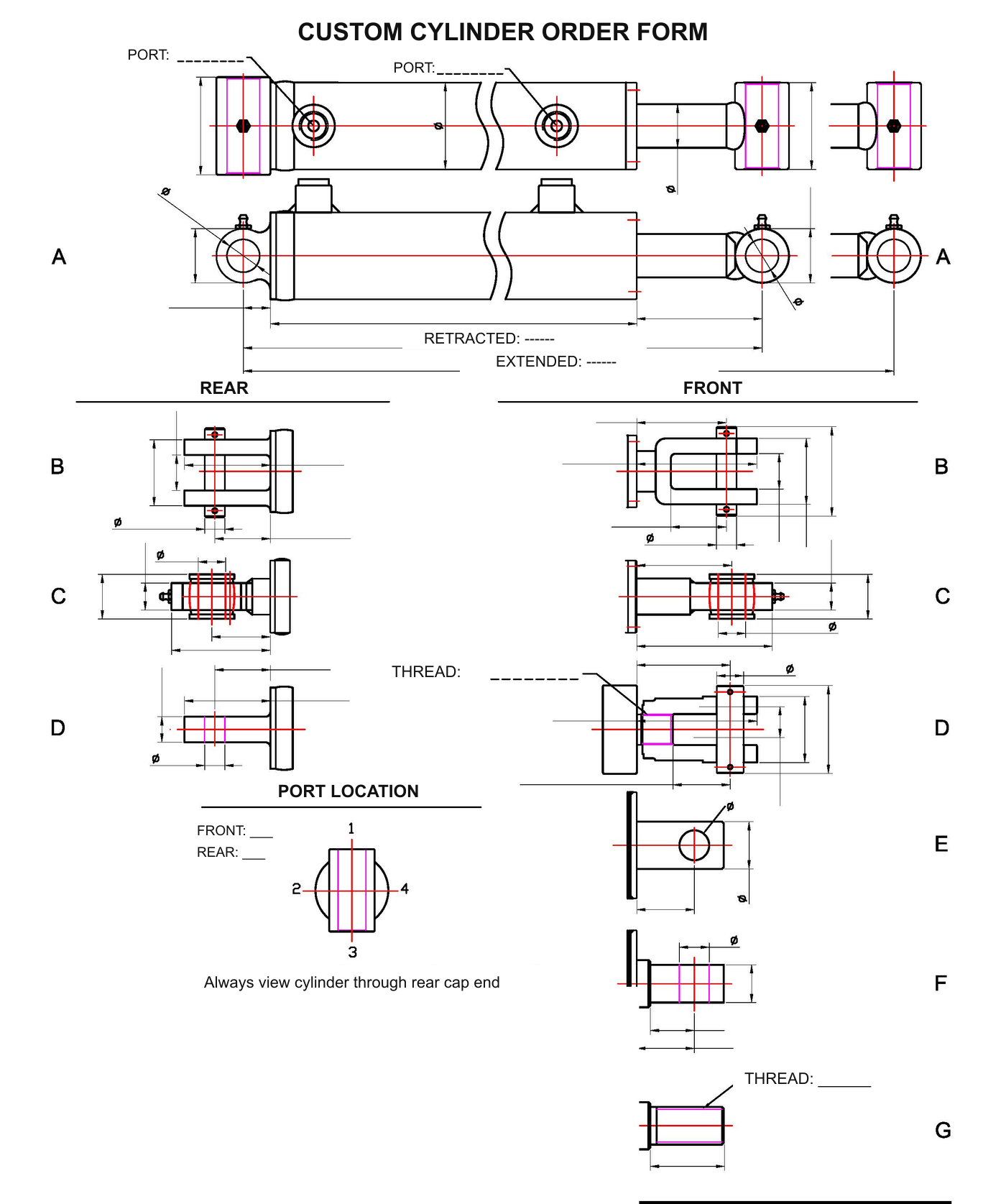

Order form — custom cylinder

Cylinder dimensions

Mount type

Ports

Order

Contact

Order form — custom telescopic cylinder

Application

Hydraulic system

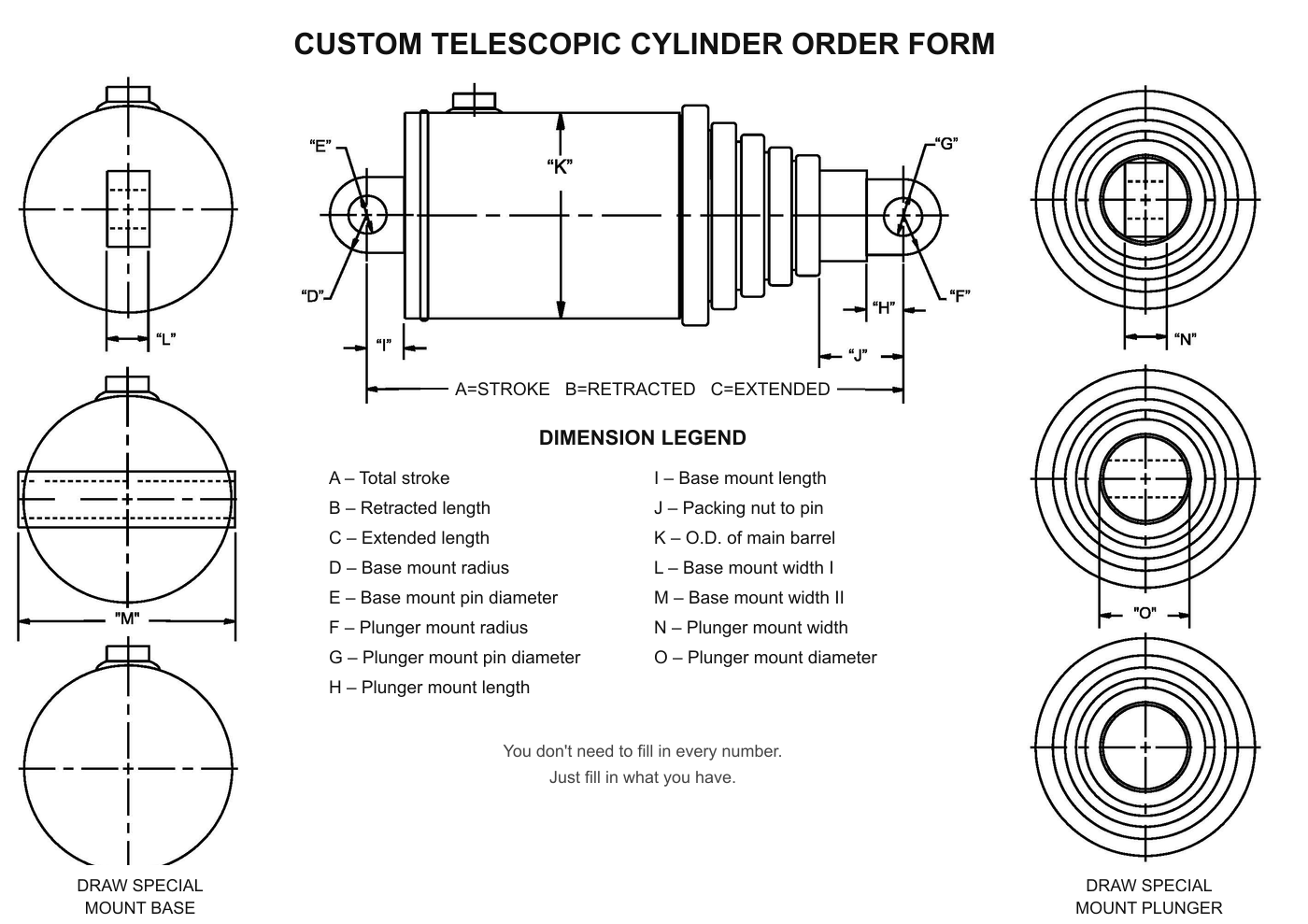

Dimensions (from the drawing)

Ports

Order

Contact

Contact us for any technical requirements.
