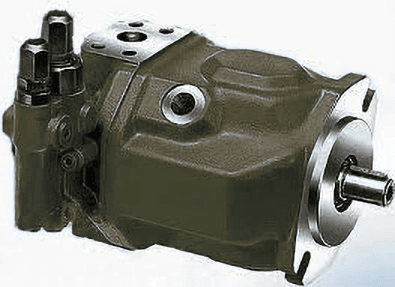

Variable Displacement piston pumps
Download PDF
| A10V series Pumps | |||
|---|---|---|---|
| Displacement | Pressure | Peak Pressure | Speed |
| cc / cu/in² | PSI | PSI | RPM |
| 18 / 1.10 | 4,000 | 5,000 | 3,300 |
| 28 / 1.17 | 4,000 | 5,000 | 3,000 |
| 45 / 2.75 | 4,000 | 5,000 | 2,600 |
| 71 / 4.33 | 4,000 | 5,000 | 2,200 |
| 100 / 6.10 | 4,000 | 5,000 | 2,000 |
| 140 / 8.54 | 4,000 | 5,000 | 1,800 |
Fixed Displacement Radial Piston Pumps
Download PDF
| High Pressure Pumps | ||
|---|---|---|
| Pressure (psi) | L20 | H20 |
| Pistons 7 | Pistons 7 | |
| GPM at 1,800 RPM | ||
| 0 | 1.4 | 1.05 |
| 1,000 | 1.35 | 0.98 |
| 2,000 | 1.30 | 0.92 |
| 3,000 | 1.25 | 0.89 |
| 4,000 | 1.22* | 0.86 |
| 5,000 | 1.20* | 0.83 |
| 6,000 | 0.79 | |
| 7,000 | 0.75* | |
| 8,000 | 0.73* | |
| 9,000 | 0.70* | |
| 10,000 | 0.67* | |
| * intermittent | ||
| High Pressure Pumps | |||
|---|---|---|---|
| Pressure (psi) | L80 | M80 | H80 |
| Pistons 7 | Pistons 7 | Pistons 7 | |
| GPM at 1,800 RPM | |||
| 0 | 6.10 | 4 | 2.50 |
| 1,000 | 5.80 | 3.70 | 2.30 |
| 2,000 | 5.60 | 3.50 | 2.20 |
| 3,000 | 5.40* | 3.40 | 2.10 |
| 4,000 | 3.20* | 2.00 | |
| 5,000 | 3.10* | 1.90 | |
| 6,000 | 1.85 | ||
| 7,000 | 1.80* | ||
| 8,000 | 1.75* | ||
| 9,000 | 1.70* | ||
| 10,000 | 1.65* | ||
| * intermittent | |||
| High Pressure Pumps | |||
|---|---|---|---|
| Pressure (psi) | L80 | M80 | H80 |
| Pistons 14 | Pistons 14 | Pistons 14 | |
| GPM at 1,200 RPM | |||
| 100 | 6.70 | 8.20 | 12.80 |
| 1,000 | 6.50 | 7.80 | 12.40 |
| 2,000 | 6.20 | 7.50 | 12.00 |
| 3,000 | 6.90 | 7.20 | 11.50 |
| 4,000 | 5.70* | 6.90 | 11.00 |
| 5,000 | 5.50* | 6.60 | 10.50 |
| 6,000 | 5.40* | 6.20* | 10.10* |
| 7,000 | 6.00* | 9.70* | |
| 8,000 | 5.60* | 9.30* | |
| 9,000 | 5.30* | 8.90* | |
| 10,000 | 5.00* | 8.50* | |
| * intermittent | |||
Not sure what hydraulic pump to select? Send us your technical requirements and we will work with you to select the proper pump for your application.
